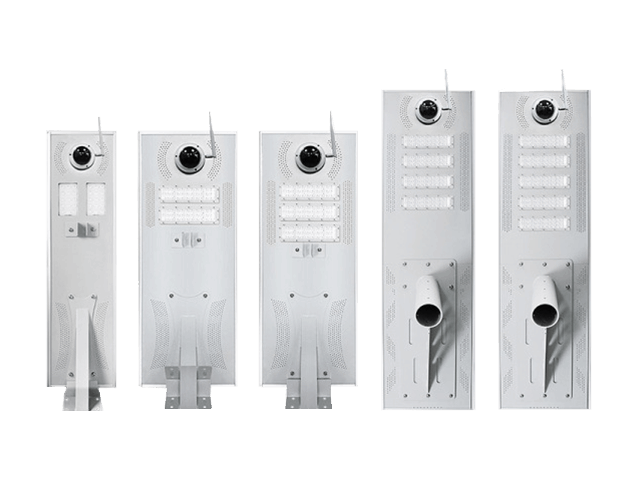

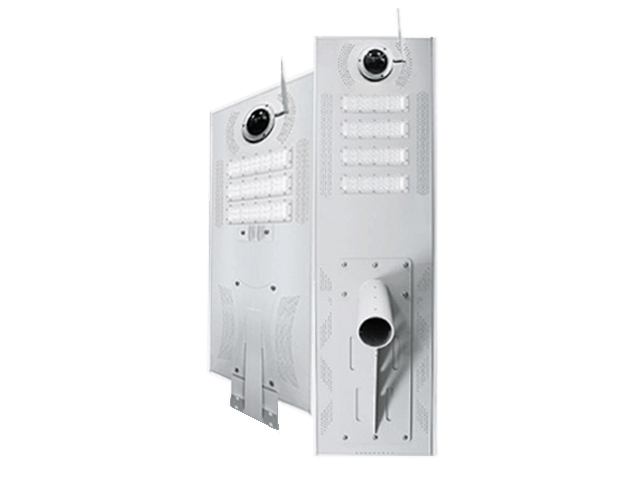

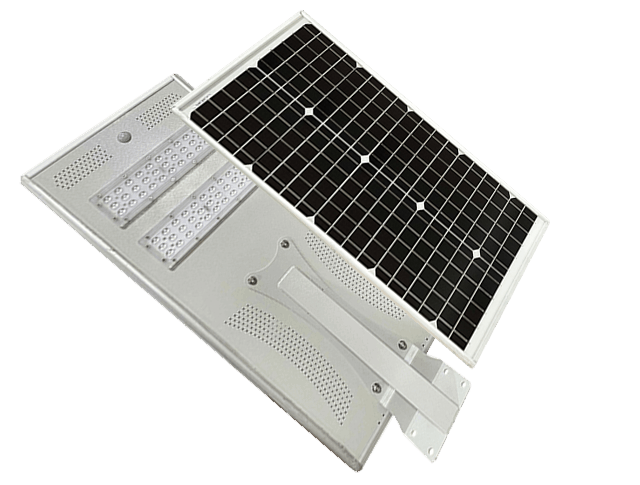

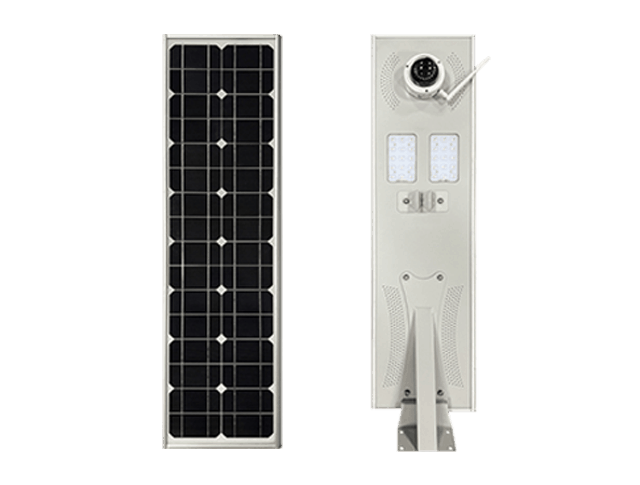

| Model |
NK-S30 |
NK-S40 |
NK-S50 |
NK-S60 |
NK-S80 |
NK-S100 |
NK-S120 |

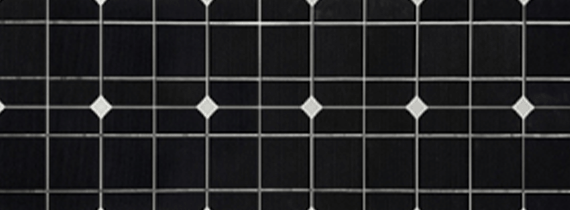

| Solar panel (Monocrystalline silicon) |
18V 50W |
18V 50W |
18V 70W |
18V 70W |
18V 100W |
18V 130W |
18V 130W |
| Solar panel life span |
25 Years |
| LiFePO4 lithium battery |
12.8V 21AH |
12.8V 24AH |
12.8V 33AH |
12.8V 36AH |
12.8V 48AH |
12.8V 60AH |
12.8V 66AH |
| Battery life span |
5-8 Years |
| LED Source |
12V 30W |
12V 40W |
12V 50W |
12V 60W |
12V 80W |
12V 100W |
12V 120W |
| Chips brand |
3030 LED Chips (30PCS) |
3030 LED Chips (40PCS) |
3030 LED Chips (60PCS) |
3030 LED Chips (60PCS) |
3030 LED Chips (90PCS) |
3030 LED Chips (120PCS) |
3030 LED Chips (150PCS) |
| lumens |
150-160 LM/W |
| Lifespan |
50000 Hours |
| Installation Mounting height |
4 M |
5 M |
6 M |
7 M |
8 M |
9 M-10 M |
11 M-12 M |
| Installation Mounting distance |
12 M |
15 M |
18 M |
20 M |
20 M-25 M |
25 M -30 M |
25 M-30 M |

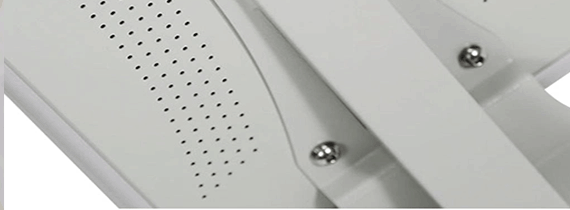

| Lamp body material |
Aluminium Alloy |
| Charging time |
6-7 Hours (with enough strong shine) |
| Lighting time |
10-12 hours per day,sustain 3-5 rainy days |
| Working mode |
Light control and PIR sensor(When someone close to the lamp with 100% power, after 30s turn to 30% power)/Time control(4H 100% power + 2H 50% power + 6H 30% power) |
| Certificates |
CE、ROHS、IP65、ISO9001 |
| Warranty |
3 Years |
| Product size |
930*320*135 mm |
930*320*135 mm |
1150*325*135 mm |
1150*325*135 mm |
1136*420*135 mm |
1469*420*45 mm |
1469*420*45 mm |
| N.W. |
9.2 KGS |
9.5KGS |
12.7KGS |
13.1KGS |
17.2KGS |
29KGS |
29KGS |
| Package size |
930*345*200 mm |
930*345*200 mm |
1180*345*200 mm |
1180*345*200 mm |
1180*470*200 mm |
1520*470*200 mm(Lamp) |
1520*470*200 mm(Lamp) |
| 710*310*310 mm(Sleeve) |
710*310*310 mm(Sleeve) |
| G.W. |
10.7 KGS |
11.3KGS |
14.7KGS |
15KGS |
19.7KG |
33.8KG |
33.8KG |
| Q'ty/ctn: |
1 set/ctn |
1 set/ 2ctn |
| 20GP Container |
400 Sets |
400 Sets |
295 Sets |
295 Sets |
230 Sets |
155 Sets |
155 Sets |
| 40HQ Container |
815 Sets |
815 Sets |
600 Sets |
600 Sets |
530 Sets |
376 Sets |
376 Sets |

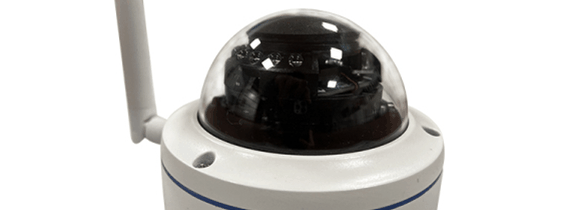

| Camera Specifications |
|
|
|
|
|
|
|
Product features:
• 1/2.8" Progressive Scan CMOS Image Sensor
• Resolution:2MP/1080P (1920(H)×1080(V))
• Min. Illumination:0.01 Lux@(F1.2, AGC ON), 0.001 Lux with IR
• H.265/H.264 Compression Method
• Fixed Lens:Default shipment 3.6mm, Optional 2.8mm/6mm
• Infrared LED:15PCS,IR Distance 45m Max.
• ONVIF:Support |
• P2P:Support
• Network Interface:1 RJ45 10M/100M self-adaptive Ethernet port
• Support motion detection, alarm recording, picture capture
• Support 2.4GHz WIFI(802.11b/g/n)
• Support AP hotspot power supply, mobile phone directly connect to wifi camera
• Supports factory reset function
• Audio:Optional, Audio input/Audio output, two-way voice
• On-Board Storage:Support, 128G TF card Max.
• Power:DC12V±10%
• IP66 Outdoor |
| Camera |
Image Sensor |
1/2.8" Progressive Scan CMOS Image Sensor |
| Resolution |
2MP/1080P |
| Effective Pixels |
1920(H)×1080(V) |
| Compression |
H.265/H.264 |
| TV System |
PAL/NTSC |
| Electronic Shutter Time |
PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio |
≥52dB |
| Scanning System |
Progressive |
| Lens |
Focus Length |
Default shipment 3.6mm, Optional 2.8mm/6mm |
| Focus Control |
Fixed |
| Lens Type |
Fixed |
| Night Vision |
Infrared |
LED 15PCS |
| Infrared Distance |
10~25m Max |
| IR StatusSuppot |
Smart IR |
| Auto Control IR LED |
PWM |
| Network |
Ethernet |
1 RJ45 10M/100M self-adaptive Ethernet port |
| WIFI |
Support 2.4GHz WIFI(802.11b/g/n) |
| On-Board Storage |
Support, 128G TF card Max. |
| Protocol |
HTTP,FTP,DHCP,RTSP,NTP,ONVIF,RTMP,P2P |
| ONVIF |
Support |
| P2P |
Support |
| Audio |
Optional, Audio input/Audio output |
| Main Stream |
50Hz: 1080P@25fps; 60Hz: 1080P@25fps |
| Sub Stream |
50Hz: D1@25fps; 60Hz: D1@25fps |
| IE Brower |
IE, Chrome, Firefox, Safari |
| Smart Phone |
iPhone, iPad, Android, Android Pad |
| Camera Features |
Day/Night |
Color/ B&W (IR-CUT ) |
| White Balance |
AUTO / MANUAL |
| Gain Control |
Support |
| OSD Support |
Support |
| Picture Adjustment |
Support |
| Noise Reduction |
3D NR |
| General |
Power consumption |
≤4W |
| Power Source |
DC12V±10% |
| Protection |
Ingression protection: IP66 |
| Operation Temperature |
-10 °C to 60 °C,Humidity 95% or less (non-condensing) |
